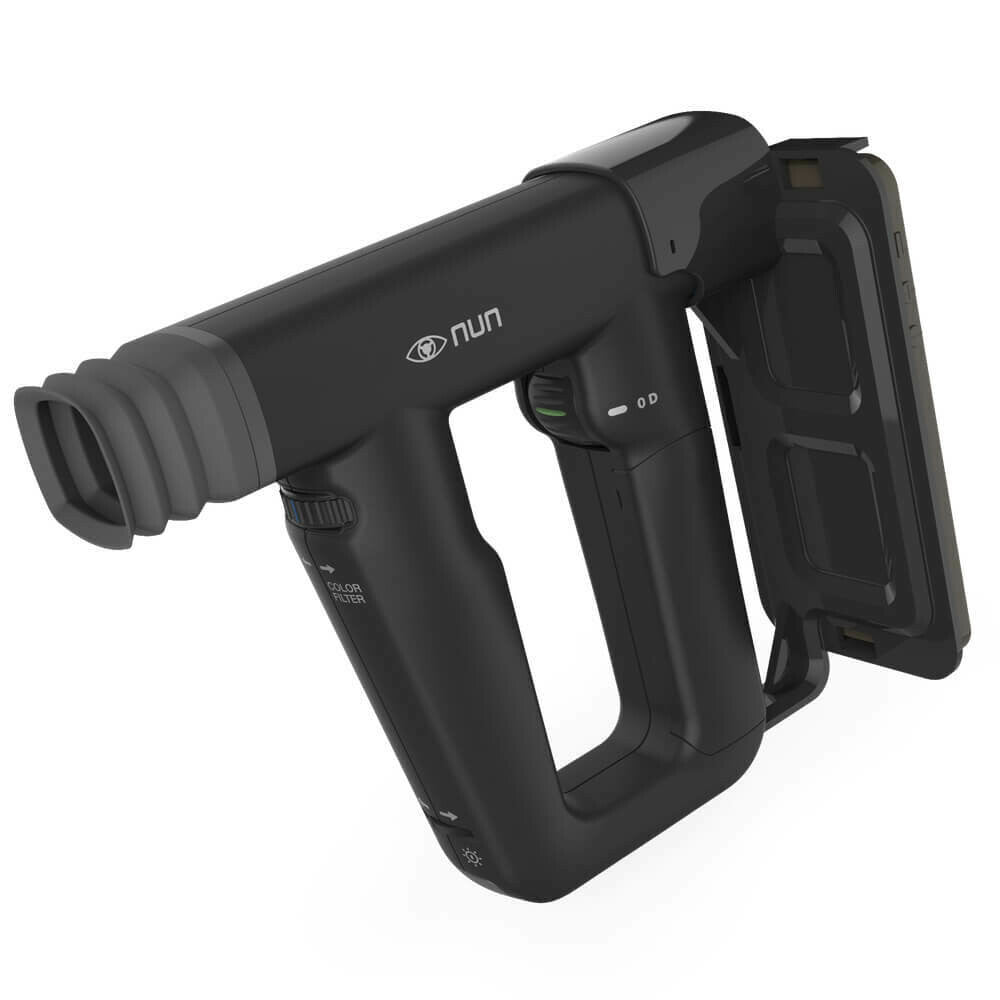

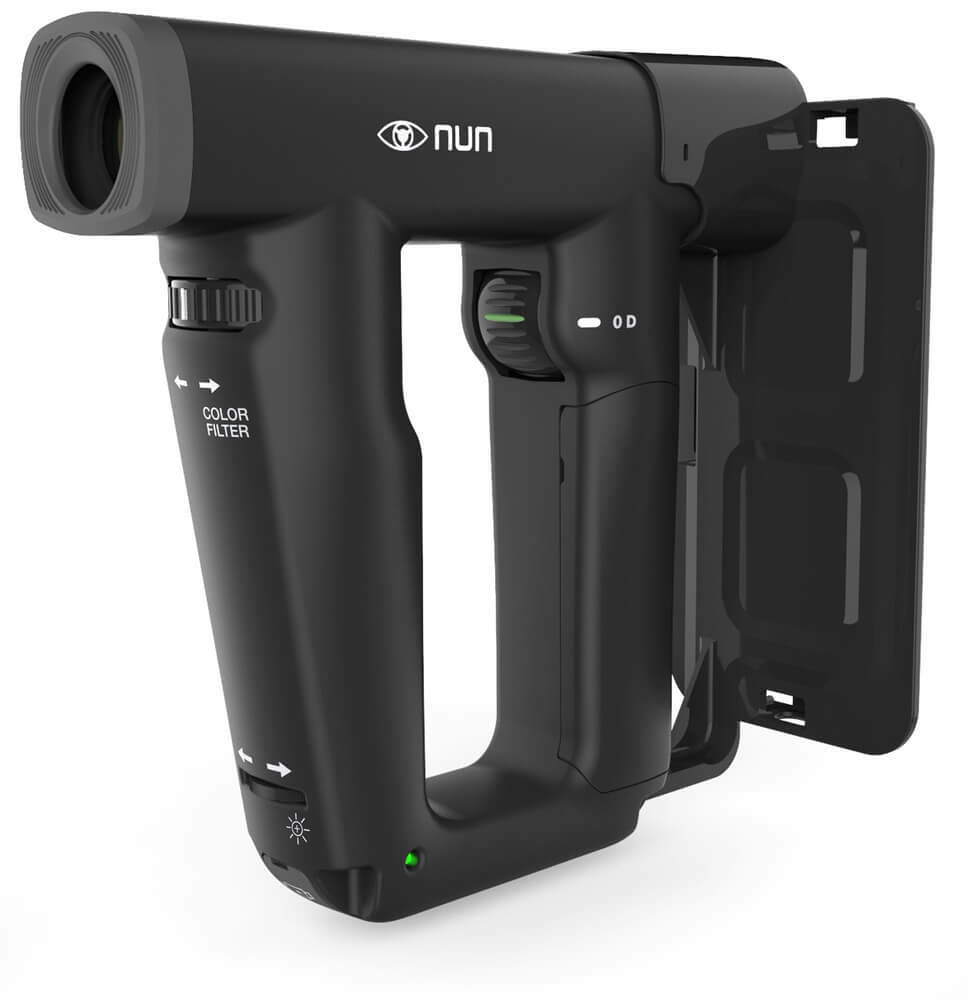

The NUN Ophthalmoscope (WFE-02S) is a professional medical diagnosis device for ophthalmology diagnostics, designed for observing the retina in human or animal eyes. This handheld ophthalmoscope supports direct retinal observation through the eyepiece, providing a practical solution for clinical examinations in hospitals, private practices and medical clinics.

Optical design and clinical usability

This ophthalmoscope comprises an objective lens, a relay lens and an eyepiece to support clear retinal viewing. Because retinal observation is performed through the small aperture of the pupil, an illuminating optical system is required to deliver adequate, consistent light. For effective routine examinations, the ophthalmoscope is designed to secure a sufficient FOV (field of view) so a wide retinal area can be assessed during screening and follow-up.

To accommodate variations between patients’ eyes, the instrument includes a focus mechanism. As human eyes differ slightly from each other, focus compensation is commonly achieved by moving the objective lens. This is the same principle as adjusting focus by moving the eyepiece in a microscope or telescope, helping clinicians achieve appropriate clarity during ophthalmology diagnostics.

Smartphone adapter and application (retinal image recording and management)

The smartphone adapter improves usability by enabling clinicians to record a patient’s retinal image for documentation and review. By adopting a universal smartphone adaptor, the product is designed for use with a wide range of compatible iPhone and Android smartphones. Smartphone applications for iOS and Android are available to help manage retinal images conveniently and efficiently in clinical workflows, supporting better record-keeping and communication within a practice.

Anterior eye imaging

For anterior eye imaging, set the eyepiece to +20D and maintain an approximate distance of 5cm between the eye and the eyecup. Under these conditions, you can capture the eye image, supporting assessment and documentation beyond retinal viewing when required.

Key Features

Hand-held ophthalmoscope design for professional use.

Direct retinal observation using the eyepiece.

Eyeglasses compatibility with more than 20mm eye relief for comfortable viewing.

Wide viewing angle:

Approximately 30 degree at pupil size over 4mm with mydriatic (dilated pupil).

Approximately 15 degree with non-mydriatic (undilated pupil).

Colour filter options: Cyan and blue filter to support examination preferences.

Focus mechanism with diopter range from -20D to +20D for patient-to-patient adjustment.

Ring illumination using LED for consistent illumination during examination.

Smartphone compatibility for iPhone and Android via universal smartphone adaptor.

Smartphone applications available for iOS and Android for retinal image management.

Rechargeable design with micro USB connector.

Anterior eye imaging supported using the +20D setting at an approximate 5cm working distance.

Combining direct retinal observation with smartphone-enabled imaging, the NUN Ophthalmoscope (WFE-02S) offers a practical solution for healthcare professionals seeking a portable diagnostic instrument for everyday clinical examinations.
